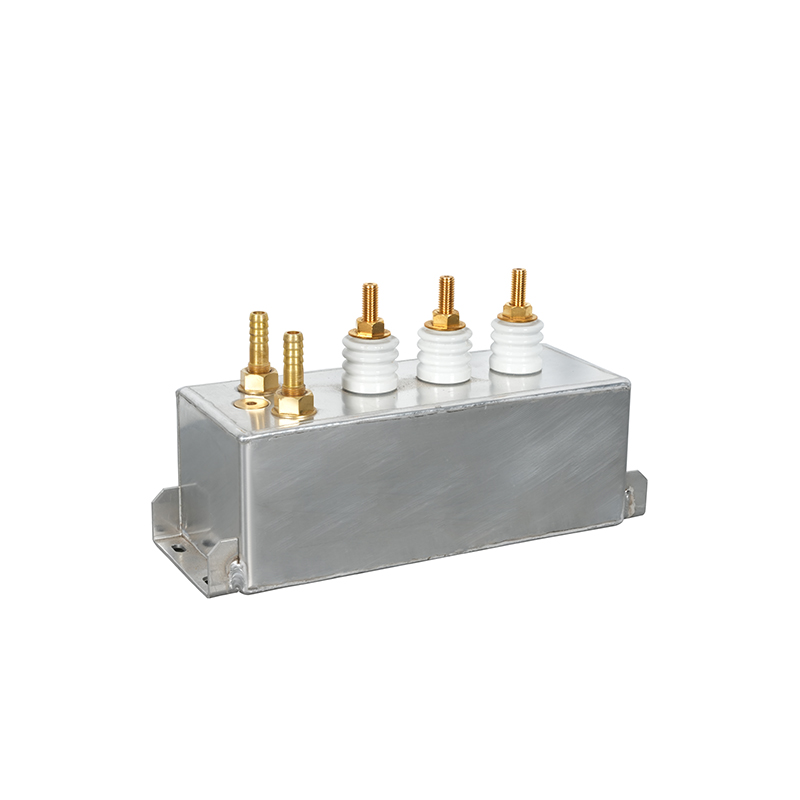

RFM 1500KVar Water-Cooled 800V Induction Capacitor

Home / Products / Induction Heating & Melting Capacitors / RFM 1500KVar Water-Cooled 800V Induction Capacitor

RFM 1500KVar Water-Cooled 800V Induction Capacitor

RFM 1500KVar Water-Cooled 800V Induction Capacitor, as the crystallization of high-end technology in the power industry, is tailored for high-demand, high-power power systems. This product adopts an advanced water-cooling heat dissipation system to effectively deal with the temperature rise problem under long-term high-load operation, ensuring that the capacitor bank can still maintain performance stability and service life under working conditions. Its core design integrates the latest induction capacitor technology, and the ultra-large capacity of 1500KVar enables the capacitor to show extraordinary capabilities in reactive power compensation, harmonic suppression, and improving the power factor of the power grid. The rated voltage of 800V ensures that it can be used in a wide range of industrial applications, whether it is power transmission, large motor drive, or industrial automation control system, it can provide stable and reliable power support. RFM 1500KVar water-cooled induction capacitor also has electrical performance, including low loss, high insulation strength, and anti-electromagnetic interference ability, providing a solid guarantee for the safe and stable operation of the power system. Its compact structure design and convenient installation and maintenance reduce the workload of on-site installation and facilitate subsequent operation and maintenance management. RFM 1500KVar water-cooled 800V inductive capacitor is a top product that combines high performance, high reliability, and easy maintenance. It is widely used in many fields such as electricity, metallurgy, petroleum, chemical industry, etc. It is an ideal choice for improving the overall performance of the power system, reducing energy consumption, and achieving green and sustainable development.

PREV：RAM 1250V 2000KVar 500Hz Low Frequency Induction CapacitorNEXT：RAM 3000KVar Middle Frequency Water Cooled Capacitors

  • Specification

    Capacitors can be supplied with either of the following configurations depending on the applications & customers' requirements.
    Configuration 1: Single cooled-live case design, with sub-sections. (one terminal connected to the casing).
    Configuration 2: Single cooled-isolated / dead case design, with sub-sections. (all terminals isolated).
    Configuration 3: Double cooled-isolated / dead case design, without sub-sections. (all terminals isolated).

  • describe

    TYPE Rated UN (V) QN(kvar) fN (Hz) IN(A) CN(uF)
    RFM 0.46-100-0.06S 460 100 60 217.4 1253.6
    RFM 1.2-120-0.06S 1200 120 60 100 221
    RFM 0.22-230-9.6S 220 230 9600 1045.5 78.8
    RFM 1.0-250-50S 1000 250 50000 250 0.8
    RFM 0.75-300-0.18S 750 300 180 400 471.6
    RFM 0.8-300-9.6S 800 300 9600 375 7.8
    RFM 2. 0-300-0.7S 2000 300 700 150 17.05
    RFM 0.25-318-2.7S 250 318 270 1272 300
    RFM 1.1-400-3.0S 1100 400 3000 363.6 17.5
    RFM 0. 55-420-054S 550 420 540 763.6 409.2
    RFM 0.8-450-0.96S 800 450 960 562.5 116.6
    RFM 0.4-450-3.0S 400 450 3000 1125 149.2
    RFM 0.8-450-25S 800 450 25000 562.5 4.5
    RFM 1.1-500-0.05S 1100 500 50 454.5 1315.3
    RFM 1.0-600-0.54S 1000 600 540 600 176.8
    RFM 1.25-750-1.0S 1250 750 1000 600 76.4
    RFM 0.9-800-6S 900 800 6000 888.9 26.2
    RFM 0. 5-800-3.0S 500 800 3000 1600 169.8
    RFM 0.8-805-4.0S 800 805 4000 1006.3 50.1
    RFM 0.88-1000-3.0S 1000 880 3000 880 46.7
    RFM 2.2-1815-1.3S 1000 900 1200 900 119.4
    RFM 0.4-900-3.0S 400 900 3000 2250 298.4
    RFM 0. 44-900-9.6S 440 900 9600 2045.5 77.1
    RFM 0. 6-990-25S 600 990 25000 1650 17.5
