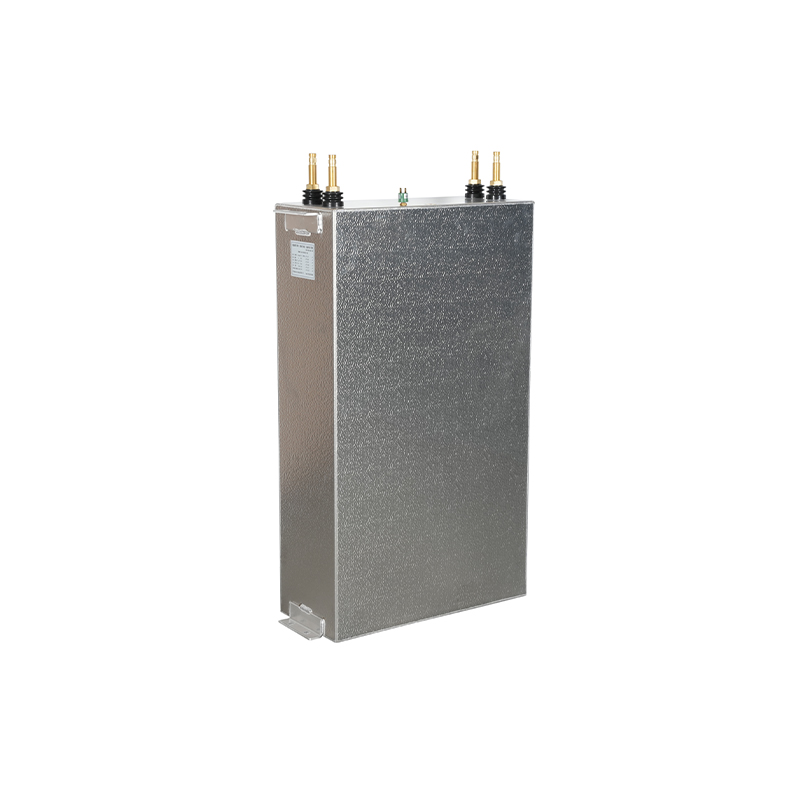

Electrothermal high-voltage dry parallel capacitor: an electric artifact to improve power factor

1. Working principle of electrothermal high-voltage dry parallel capacitor
In AC power system, the phase difference between current and voltage is the main reason for the reduction of power factor. Especially for inductive loads, such as motors and transformers, they need to consume a lot of reactive power during operation, which makes the current lag behind the voltage and the power factor decreases. The reduction of power factor will not only increase the line loss of the power system, but also reduce the utilization efficiency of power equipment, and may even affect the stability of the power system.

Electrothermal high-voltage dry parallel capacitor is designed to solve this problem. It provides additional reactive power by connecting to the power system in parallel, thereby compensating for the reactive power consumed by the inductive load. When the capacitor is connected in parallel at both ends of the load, it will generate a capacitive current in the opposite direction of the load current. This capacitive current will lead the voltage and offset the lagging part in the load current, thereby reducing the phase difference between the total current and voltage and improving the power factor.

The working principle of the electrothermal high-voltage dry parallel capacitor is based on the basic characteristics of capacitance, that is, the capacitor can store electrical energy and release it when needed. In the AC system, the capacitor will continuously charge and discharge, generating capacitive current, which offsets the reactive component in the load current, thereby achieving reactive compensation.

2. Characteristics of electrothermal high-voltage dry parallel capacitor
Efficient reactive compensation capability
The electrothermal high-voltage dry parallel capacitor has efficient reactive compensation capability and can quickly respond to changes in reactive demand of the power system. Its compensation effect is stable and reliable, which can effectively improve the power factor of the power system, reduce line losses, and improve the utilization efficiency of power equipment.

Safe and reliable operation performance
The electrothermal high-voltage dry parallel capacitor adopts a dry design and does not contain oil-immersed substances, avoiding the pollution of the environment caused by oil leakage and the risk of fire and explosion. At the same time, it also has protection functions such as overvoltage and overcurrent, which can ensure safe and reliable operation under abnormal conditions.

Easy maintenance and long service life
The electrothermal high-voltage dry parallel capacitor is easy to maintain, and there is no need for tedious maintenance work such as regular replacement of insulating oil. It has a long service life and can operate stably for a long time in harsh environments, providing continuous reactive power compensation support for the power system.

Flexible and diverse application scenarios
Electrothermal high-voltage dry-type shunt capacitors can be widely used in various power systems, including power plants, substations, industrial and mining enterprises and other places. It can be flexibly configured according to different reactive power requirements to meet the reactive power compensation requirements in different scenarios.

3. Application of electrothermal high-voltage dry-type shunt capacitors
Application in power plants and substations
In power plants and substations, electrothermal high-voltage dry-type shunt capacitors are widely used to improve power factor, reduce line losses and improve power quality. By connecting to the export bus of the generator or transformer in parallel, the capacitor can provide additional reactive power to compensate for the reactive power consumed by the inductive load, thereby improving the power factor of the entire power system.

Application in industrial and mining enterprises
In industrial and mining enterprises, there are a large number of inductive load equipment such as motors and transformers, which consume a lot of reactive power during operation, resulting in a decrease in power factor. By installing electric thermal high-voltage dry parallel capacitors, the reactive power consumed by these devices can be effectively compensated, the power factor can be improved, the power loss can be reduced, and the utilization efficiency of the equipment can be improved.

Application in renewable energy systems
With the rapid development of renewable energy, the large-scale access of intermittent energy such as wind energy and solar energy has put forward higher requirements for the stability and reliability of the power system. Electric thermal high-voltage dry parallel capacitors can play an important role in renewable energy systems, stabilizing the grid voltage and frequency by providing reactive support, and improving the grid connection capacity and utilization rate of renewable energy.

Application in smart grids
Smart grids are the development direction of future power systems, which require power systems to have higher flexibility, reliability and intelligence. As an important component of smart grids, electric thermal high-voltage dry parallel capacitors can be combined with intelligent dispatching systems to realize automatic adjustment and optimal configuration of reactive power, and improve the operating efficiency and stability of power systems.

4. The significance of electric heating high-voltage dry parallel capacitors to power systems
Improve power factor and reduce line losses
By connecting to the power system in parallel, electric heating high-voltage dry parallel capacitors can provide additional reactive power to compensate for the reactive power consumed by the inductive load, thereby improving the power factor. The improvement of power factor can reduce line losses, improve the utilization efficiency of power equipment, and reduce electricity costs.

Improve power quality
Electric heating high-voltage dry parallel capacitors can also improve power quality and reduce the occurrence of voltage fluctuations and flicker. It can stabilize the grid voltage and frequency by providing reactive support, and improve the power supply quality and reliability of the power system.

Enhance the stability of the power system
Electric heating high-voltage dry parallel capacitors can enhance the stability of the power system and improve the anti-disturbance ability of the power system. When a fault or abnormal situation occurs in the power system, the capacitor can quickly provide reactive support to help the power system return to a stable operating state.

Promote the grid connection and utilization of renewable energy
With the rapid development of renewable energy, electric heating high-voltage dry parallel capacitors are increasingly used in renewable energy systems. It can stabilize the voltage and frequency of the grid by providing reactive power support, improve the grid connection capacity and utilization rate of renewable energy, and promote the sustainable development of renewable energy.
