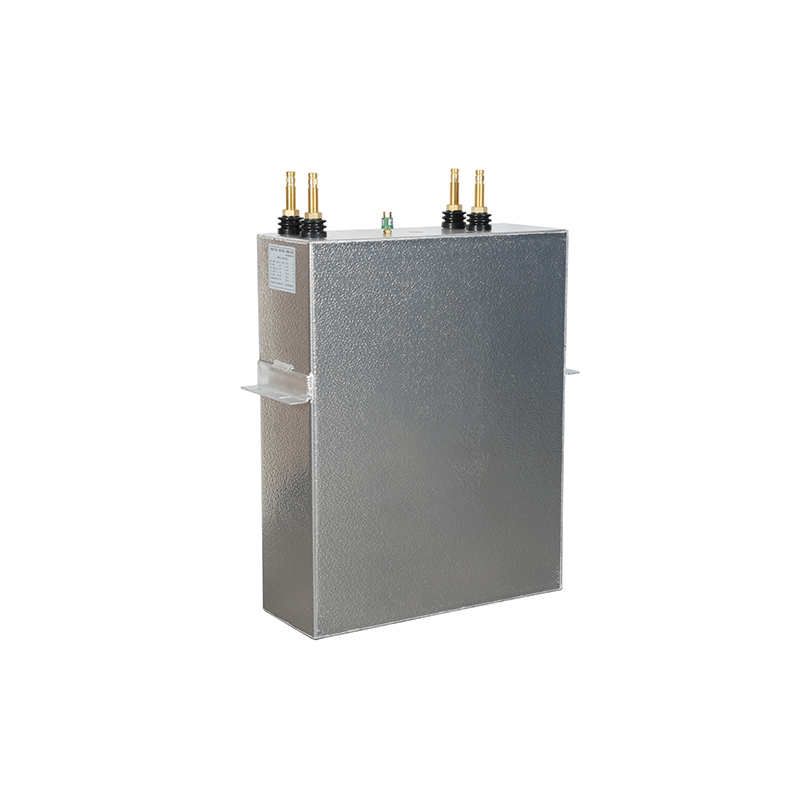

Induction Furnace High Power Electric Heating Water Cooled Capacitor

Induction furnace high-power electric heating water-cooled capacitors use high-precision CNC machine tools for shell processing to ensure that the capacitors have a compact structure and sealing performance, effectively resist external environmental interference, and extend their service life. The selection of high-purity electrolytic paper and high-quality metalized film as dielectric materials, combined with high-conductivity metal electrodes, not only improves the voltage resistance and capacitance of the capacitor but also significantly enhances its high-temperature resistance and corrosion resistance. Integrated advanced temperature and current monitoring systems provide real-time feedback on the working status of the capacitor. Once an abnormality is detected, an alarm will be issued immediately to facilitate timely maintenance and ensure production safety. Through the precise capacitance adjustment mechanism, the fluctuation of the power grid is effectively smoothed, ensuring that the induction furnace can still output a stable voltage in an unstable voltage environment, and protecting other electrical components from damage. Due to the use of efficient water cooling and intelligent monitoring technology, the operating temperature and failure rate of the capacitor is greatly reduced, thereby extending the service life of the entire induction furnace system and reducing maintenance costs.

  • Specification

    Capacitors can be supplied with either of the following configurations depending on the applications & customers' requirements.
    Configuration 1: Single cooled-live case design, with sub-sections. (one terminal connected to the casing).
    Configuration 2: Single cooled-isolated / dead case design, with sub-sections. (all terminals isolated).
    Configuration 3: Double cooled-isolated / dead case design, without sub-sections. (all terminals isolated).

  • describe

    TYPE Rated UN (V) QN(kvar) fN (Hz) IN(A) CN(uF)
    RFM 25-4000-0.4S 2500 4000 400 1600 254.6
    RFM 3.3-4100-0.6S 3300 410 600 1243 100
    RFM 1.5-4241-1S 1500 4241 1000 2827.3 300
    RFM 1.8-4299-1.2S 1800 4299 1200 2388.3 176
    RFM 2 0-4986-0.8S 2000 4986 800 2493 160
    RFM 2 5-5000-0.4S 2500 5000 400 2000 318.3
    RFM 4.0-5000-0.4S 4000 5000 400 1250 124.3
    RFM 1.1-5018-2.2S 1100 5018 2200 4561.8 300
    RFM 3.0-5350-0.3S 3000 5350 300 1783.3 315.4
    RFM 3.0-5400-0 45S 3000 5400 450 1800 212.2
    RFM 3.0-5450-0.7S 3000 5450 700 1816.7 137.7
    RFM 2 5-6000-1.5S 2500 6000 1500 2400 101.9
    RFM 3.0-6000-0.3S 3000 6000 300 2000 353.7
    RFM 3. 6-6000-05S 3600 6000 500 1667 147.4
    RFM 5.0-6000-0.4S 5000 6000 400 1200 95.5
    RFM 3. 3-6160-0.5S 3300 6160 500 1867 180.1
    RFM 4.0-6333-0.6S 4000 6333 600 1583.3 105
    RFM 3.0-6921-1.2S 3000 6921 1200 2307 102
    RFM 3. 6-7000-0.4S 3600 7000 400 1944.5 214.9
    RFM 1. 5-7200-1.2S 1500 7200 1200 4800 424.4
    RFM 4.4-7260-0.6S 4400 7260 600 1650 99.5
    RFM 3.3-7350-1.5S 3300 7350 1500 2227 71.6
    RFM 4.0-7500-0.4S 4000 7500 400 1875 186.5
    RFM 3.0-7804-1.2S 3000 7804 1200 2601 115
    RFM 3.0-8000-0.7S 3000 8000 700 2666.7 202.1
    RFM 3. 6-8000-0.4S 3600 8000 400 2222 245.6
